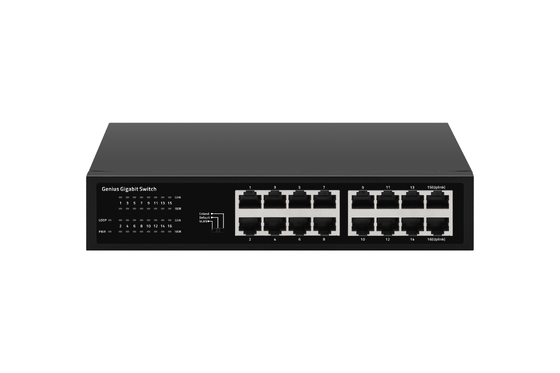

Olycom 16-port Gigabit VLAN Ethernet Switch
Technical Data
|
Product Name |
16 Port 10/100/1000Mbps Ethernet Switch |
|
Port |
16x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing) |
|
Switching Capacity |
32Gbps |
|
Throughput |
23.8Mpps |
|
Packet Buffer |
4M |
|
MAC Address |
8K |
|
Jumbo Frame |
4Kbytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network Protocol |
IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3x(Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR(EN55032) class A EMS: EN61000-4-2(ESD) EN61000-4-5(Surge) |
|
Network Medium |
10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
Certification |
CE/FCC/RoHS |
|
Working Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Input Voltage |
AC100-240V, Single Power Input Internal AC-DC Converter: 12V1A |
|
Power Consumption |
＜12W |
|
LED Indicators |
PWR(Power indicator)/LOOP(Loop alarm)/Link(Network Link)/1000M |
|
DIP Switch |
VLAN: Port Isolation, 1-14 ports are isolated each other, all communicate with uplink port 15/16 Default: Default mode, support loop alarm Extend: Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10M/s mode, port 15/16 as uplink port |
Applications
This switch is widely used in various networking scenarios, including:
Dimension
Shipping box information(Below information is approximately accurate)
Product size: 220*161*44.5mm
Inner box size: 315*215*85mm
Product weight: 0.9Kg
Packing weight: 1.42Kg
Master box size: 445*455*335mm
Packing quantity: 10Pcs
Packing weight: 15.2Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power cable is included in BOTH the packing box AND unit pricing
Quality Control
For networking and optical communication products, reliability depends on a well-structured quality system rather than isolated testing steps.
At OLYCOM, quality control is implemented across the entire product lifecycle—from component sourcing to final delivery—to ensure consistent performance in real deployment environments.
All materials are verified before production, including optical modules, electronic components, and mechanical structures. During manufacturing, automated inspection systems are used to maintain accuracy in assembly and reduce variability.
Each product undergoes functional validation, covering data transmission performance, feature operation, and power delivery where applicable. For optical systems, parameters such as wavelength accuracy, signal quality, and transmission stability are carefully evaluated.
To ensure long-term reliability, devices are tested under extreme conditions, including temperature variation, humidity exposure, and mechanical stress. In addition, extended run-time testing is conducted to identify potential early failures.
Every unit is subject to final inspection before shipment, with full traceability supported by documented test records and compliance data.
By combining standardized processes with continuous improvement, OLYCOM ensures stable, durable, and field-ready networking solutions.
