Realtek Chipset ERPS Managed Ethernet Switch Poe Switch
Support Af/at/bt 120W for Cctv Security
Key Features of Managed Ethernet Switch
Management Interface
Specificaiton of industrial poe switch
| Product Name | 10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+4TP) |
| Model No. | IM-FP244GM |
| Port |

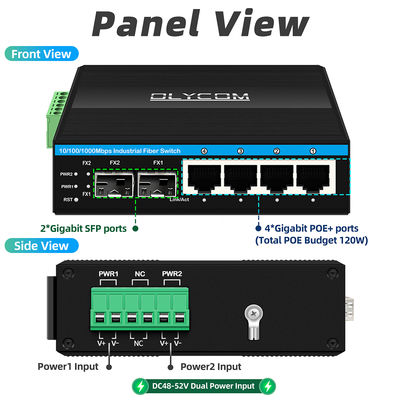

2 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x , IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X, IEEE 802.3ad, ITU-T G.8032 ERPS, IEEE802.3af, IEEE802.3at |
| Managed |
☆Support VLAN: 802.1Q VLAN (4K), Port-based VLAN ☆ Jumbo frame processing: 9k ☆ Report buffer: 64K ☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression ☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb ☆ Ring network function: support ITU-T G.8032 /Y.1344 ERPS ☆ Multicast protocol: IGMPv1/2/3 Snooping ☆ Port management: support port isolation and port aggregation ☆ DHCP management: support DHCP Snooping, option 82 ☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities ☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection |
| Switching Features |
Exchange capacity: 12Gbps Packet forwarding rate: 8.928Mpps MAC address table: 2K Swap delay: <5μs Transmission method: store and forward |
| Power supply |

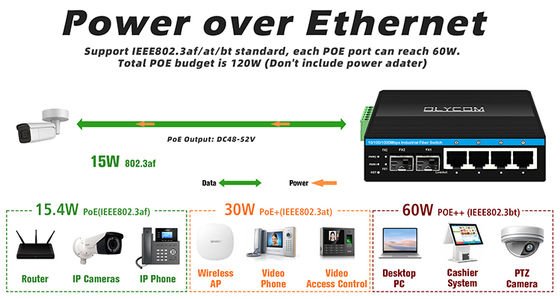

Input voltage:DC 48-52V; Support POEaf/at/bt (15.4W/30W/60W) Reverse connection: support Overload protection: support Redundant protection: support |
| Environment |
Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 75°C; Working humidity:5%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Mechanical information |

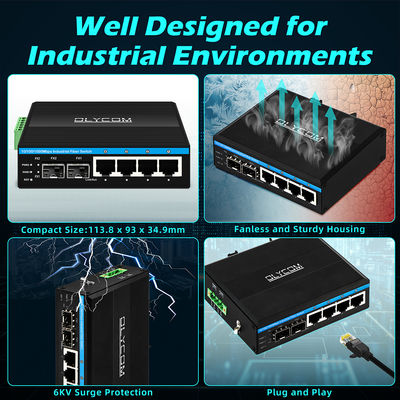

Shell:Corrugated metal shell; Safety class:IP40 Dimension:113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | 3 years |
Application

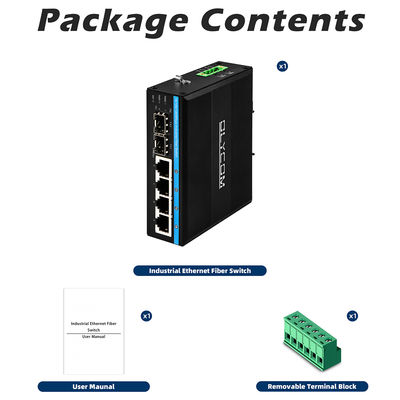

Packing List:
| PACKING LIST | CONTENT | QTY | UNIT |
| Gigabit managed industrial PoE switch | 1 | SET | |
| User Manual | 1 | PC | |
| Removable Terminal Block | 1 | PC | |
| Note: Industrial Managed POE Switch does not include the power supply and SFP module. | |||
FAQ:
1.What is the power input?
A: For non-PoE managed switches, it receives DC12V~57V, for PoE managed switches, it receives DC48V~57V.
All the models support redundant input.
2.Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
3.Can you supply a customized PVC label with my model on it?
A: Yes, there is description, model name and logo on the front PVC mask, all is available for customization.
4.What is the packing list?
A: There is a device, protective foam, a user manual, a warranty card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase it from us separately.
5.What is the PoE output voltage?
A: Its DC48V for 802.3af/802.3at/802.3bt compliant powered devices such as PoE cameras or PoE routers.
If the PD takes 24V power, then please use a PoE splitter to connect our switch and powered device.
